Environment ? Voltage Supply Class A, B, C: 1.62V to 5.5V
? -25 to +85 0C Operating Temperature
? Max supply current 10mA @ 40MHz, Class A
? Max supply current 6mA @ 40MHz, Class B
? Max supply current 4mA @ 40MHz, Class C
? > 4 kV ESD Protection HBM
CPU
? Software compatible CMOS 80x51 industry standard
? Accelerated core with 16 bit CPU performance level
? Up to 40 MHz internal CPU clock
Idle Modes
? Idle and Stop mode selectable modes
? NVM update operation with CPU in idle mode
? IO Transmission and Reception with CPU in idle mode
? Max Idle current / Clock stopped: 100 uA
Security
? Hardware Random Number Generator ? Unique chip identification number
? Notification of tampering
? IC operates under regulated voltage and internal clock
? Under / Over voltage sensors (Vcc)
? Secured layout against probing attacks
Memory Control
? General Purpose Non Volatile Memory: GPNVM
? Secure Memory Management Mechanism
? Fast Byte program
? GPNVM Page Smart Erase mechanism
I/O
? ISO 7816-3 compliant electrical interface
? ISO 7816-3 compliant reset and response T=0 and T=1 protocols
? Software controllable pull-up on IO
? ETU Timer/Counter replacing 8051 T0/T1 Timers
? ETU Timer prescaler for FIDI independant delays
? CRC16 Module ISO3309 compatible
Memories
? Local RAM (data, idata) = 256 B
? XRAM (xdata) 3328B
? GPNVM USER 128KB
? GPNVM SYSTEM 4KB
? 10 year data retention GPNVM
? GPNVM Endurance > 100 K cycles
Firmware configuration
? Boot loader GNG and T=0 compatible
? Fast Boot loader up to 32KB/s
? In option erasable Test OS option
Delivery forms
? Inkless wafer based on e-map files
? 8” Wafer sawn on frame
? Back grinding and distressing options
? UV tape option
? 150um thickness

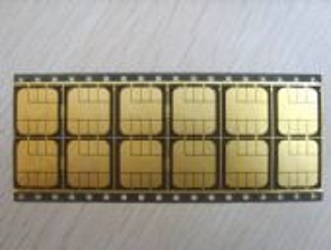

? 8-pins or 6-pins Modules
Typical Application:
? Native CDMA / GSM / RUIM / UICC OS 64KB
? Software compatibility with EMTGxx
